PROFESSIONAL TRUING

FASTER, EASIER & MORE PRECISE



Truing Stand with high stability

for perfect truing results
















Truing-stand-side Truing stand for all sizes

One truing stand for all wheel sizes

Normal-setting for racing-bikes, MTB and city-bikes etc.

For BMX and very small wheels there are two more adjustments


Quick adjustment for truing with tire

Truing stand with high stability

Perfect setting for the hub width

• Hub width from 69 mm up to 205 mm ( Fatbike )

• Stable double guiding for setting the hub width

• Setting the hub width on axle-height and only from   one side, therefore no-play setting and without   pressure on the axle position

• The position of the wheel stays constant at   unclamping and clamping

• Special manufactured locking screws out of brass


P&KLie hub width

From P&K Lie developed axle clamping

• Three-point bearing for absolutely constant axle

   position

• For axle diameter up to 16 mm

• For thru-axle you must use an adapter

• No damage of the axle because of brass

• No relocation of the axle position

• Highest repeatability at wheel change

• Only with exact axle clamping it is possible to work    accurate

• The eccentricity of the wheel axle can be measured out    before truing so that it doesn’t have any influence on    the center measuring.

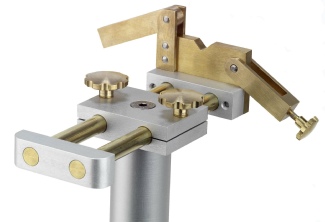

From P&K Lie developed sensor

• Easy to put in and take out the wheel because the   sensor can be locked

• Precision needle bearing for scanning the rim

• Precise scanning of the lateral and radial run out

• No damage of the rim

• Every type of rim can be scanned

• Large movements of the rim is possible with the   needle bearing

• Knurled nut for fine adjustment of the truing gauges


P&KLie wheel holder truing stand P&KLie adjustment

From P&K Lie developed adjuster

• Easy to adjust for different wheel diameter

• Solid brass

• Precise positioning

• Special handle screw made of solid brass



The truing stand is

also for Fatbike hubs

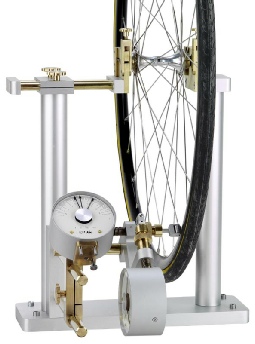

Truing stand

• High-quality processed

• All turning and milling parts

• All aluminium- and brass parts solid

• All screws out of stainless steel

• Rim width up to 110 mm

• Wheel diameter up to 740 mm

• High stability with minimum weight

• Total weight 9.2 Kg

• Space-saving and transportable

• Fastening with screws, clamp or free-standing with holder  ( accessory)

• Maintenance-free

• All adjustments out of brass, therefore no displacement of the

  adjusted position

• Push holder for exact position of the truing gauges
